上海邦泉泵業制造有限公司
Shanghai Bangquan Pump manufacturing Co., LTD
contact：+86-21-57648032，shbqmp@163.com
Shanghai Bangquan Pump Manufacturing Co., Ltd. is located in Shanghai, China, is a domestic development of liquefied petroleum gas pump manufacturers. Our company has more than ten years of manufacturing experience, so that the performance of the pump is continuously optimized, product quality is steadily improved, quality assurance system is increasingly perfect, product quality has reached the domestic advanced level.

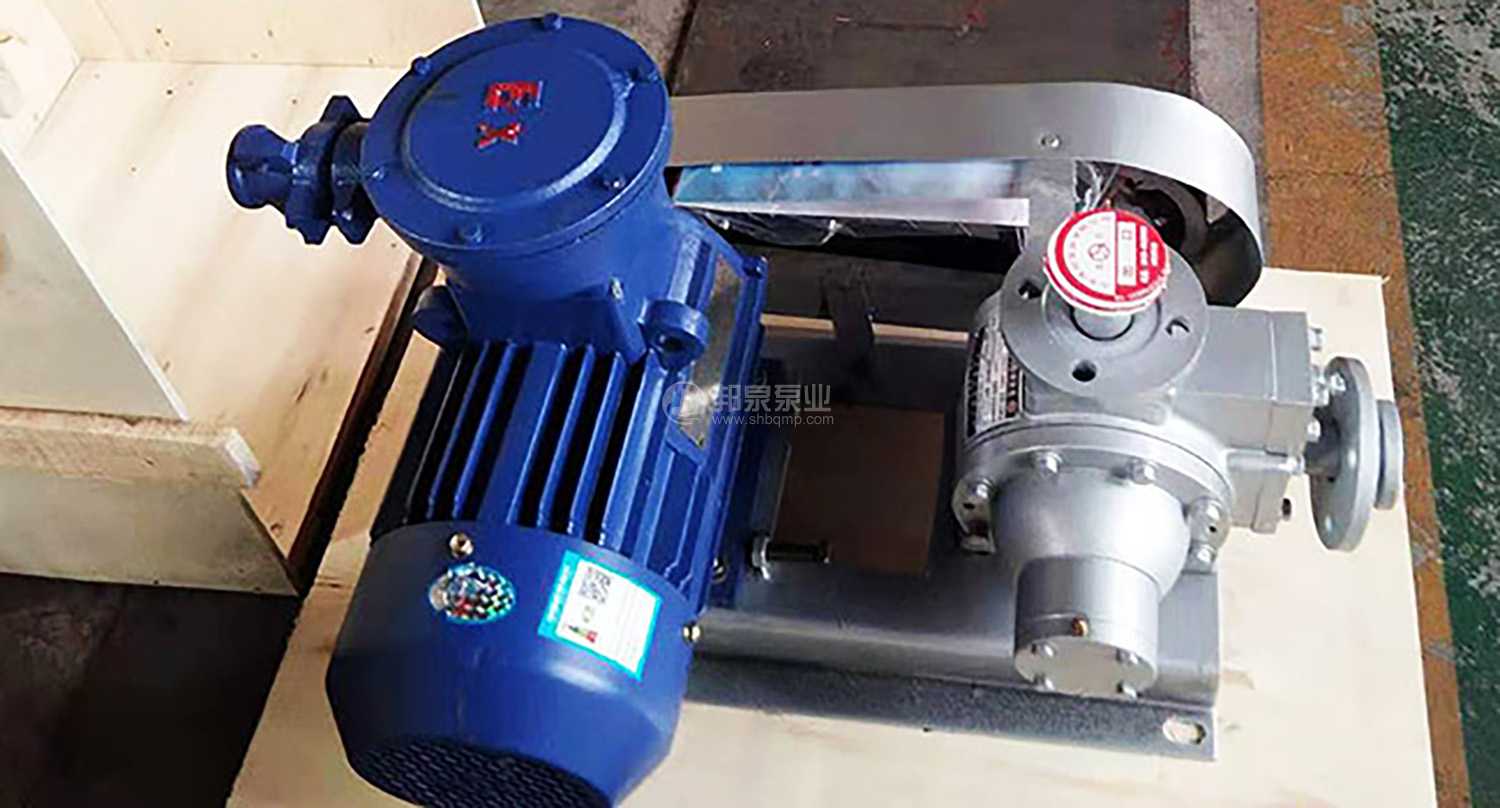

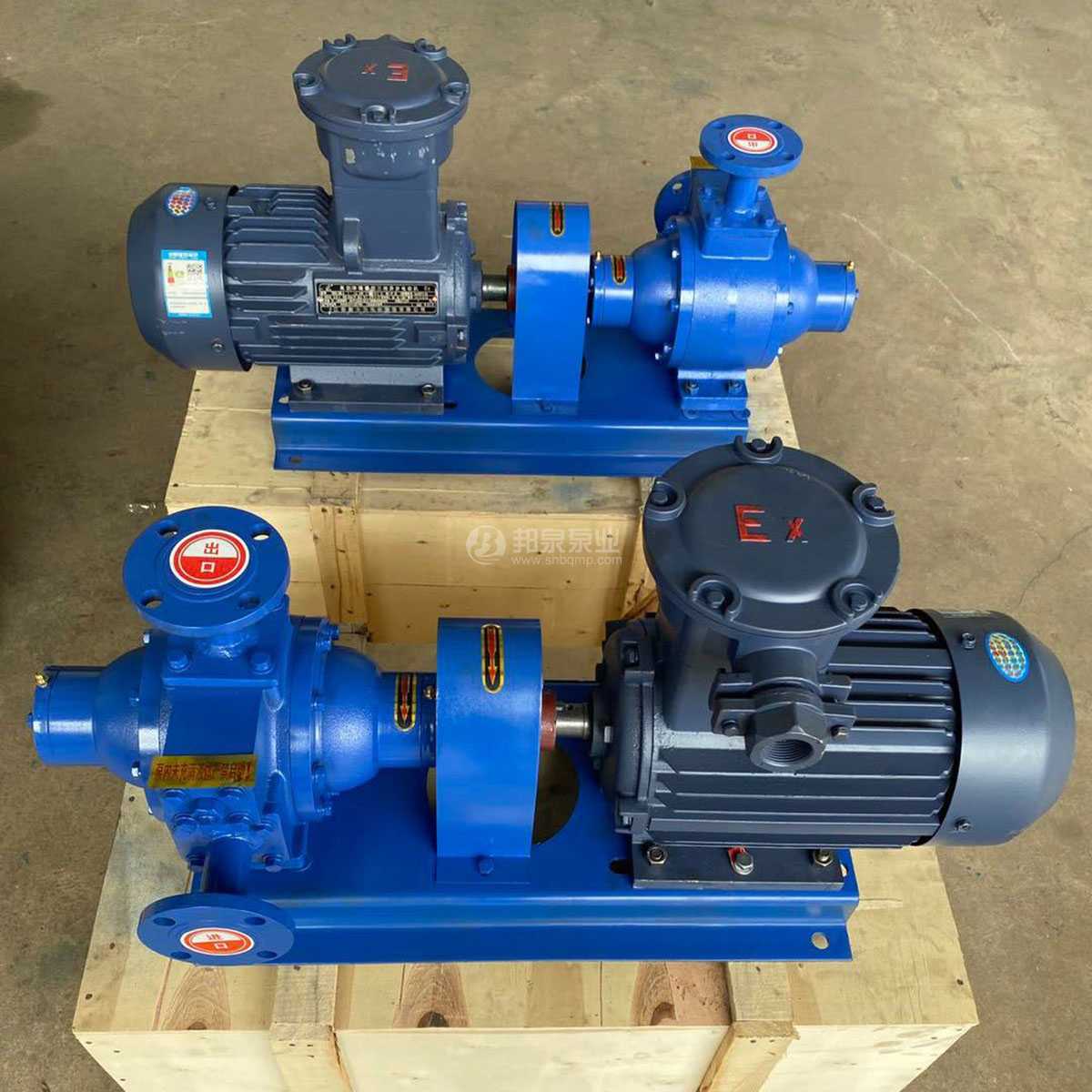

YQB series of liquefied petroleum gas pumps produced by our company are mainly used for transporting liquefied petroleum gas, propylene, liquid ammonia, or transporting various volatile liquids and petroleum products with similar properties. The pump is a positive displacement vane pump, its structure is advanced, the stator surface is composed of composite curves, both ends of the mechanical seal, the fixed match end face are using "O" type sealing ring, the rotating movement of the matching parts are metal relative non-metal, with the use of safe and reliable, a multi-purpose function.
型號意義：
YQB※-5
YQB表示液化氣泵，※表示泵的額定流量，5表示升壓范圍(進出口壓差)
性能參數
|
型號 |
轉速n |
流量Q |
壓差 △P |
工作 壓力 P |
配套電機 型號 |
功率 N |
入口 通徑 寸 |
出口 通徑 寸 |
溫度范圍 ℃ |
|
YQB2-5 |
600r.p.m |
2m3/h |
0.5Mpa |
1.8 Mpa |
YB90M-4 |
1.5KW |
1 |
1 |
±40℃ |
|
YQB5-5 |
780 r.p.m |
5 m3/h |
0.5Mpa |
1.8 Mpa |
YB112M-4 |
3 KW |
1.2 |
1.2 |
±40℃ |
|
YQB10-5 |
600 r.p.m |
10 m3/h |
0.5Mpa |
1.8 Mpa |
YB112M-4 |
4 KW |
2 |
2 |
±40℃ |
|
YQB15-5 |
780 r.p.m |
15 m3/h |
0.5Mpa |
1.8 Mpa |
YB160M-8 |
4KW |
2 |
2 |
±40℃ |
|
YQB20-5 |
960 r.p.m |
20 m3/h |
0.5Mpa |
1.8 Mpa |
YB160M-8 |
4KW |
2 |
2 |
±40℃ |
|
YQB25-5 |
600 r.p.m |
25 m3/h |
0.5Mpa |
1.8 Mpa |
YB160M-4 |
11 KW |
3 |
3 |
±40℃ |
|
YQB35-5 |
780 r.p.m |
35 m3/h |
0.5Mpa |
1.8 Mpa |
YB160M-4 |
11 KW |
3 |
3 |
±40℃ |
|
YQB60-5 |
780 r.p.m |
60 m3/h |
0.5Mpa |
1.8 Mpa |
YB160M-4 |
15 KW |
4 |
4 |
±40℃ |
